IMR-TJ

The IMR-TJ process is to place the printed decorative sheet in the mold in advance, and then injection molding after pre-forming, so it can be applied to deep-angle three-dimensional molded products. The functional sheet can also be laminated to the surface of the three-dimensional molded product.

  •       The IMR-TJ process is to place the printed decorative sheet in the mold in advance, and then injection molding after pre-forming, so it can be applied to deep-angle three-dimensional molded products. The functional sheet can also be laminated to the surface of the three-dimensional molded product.

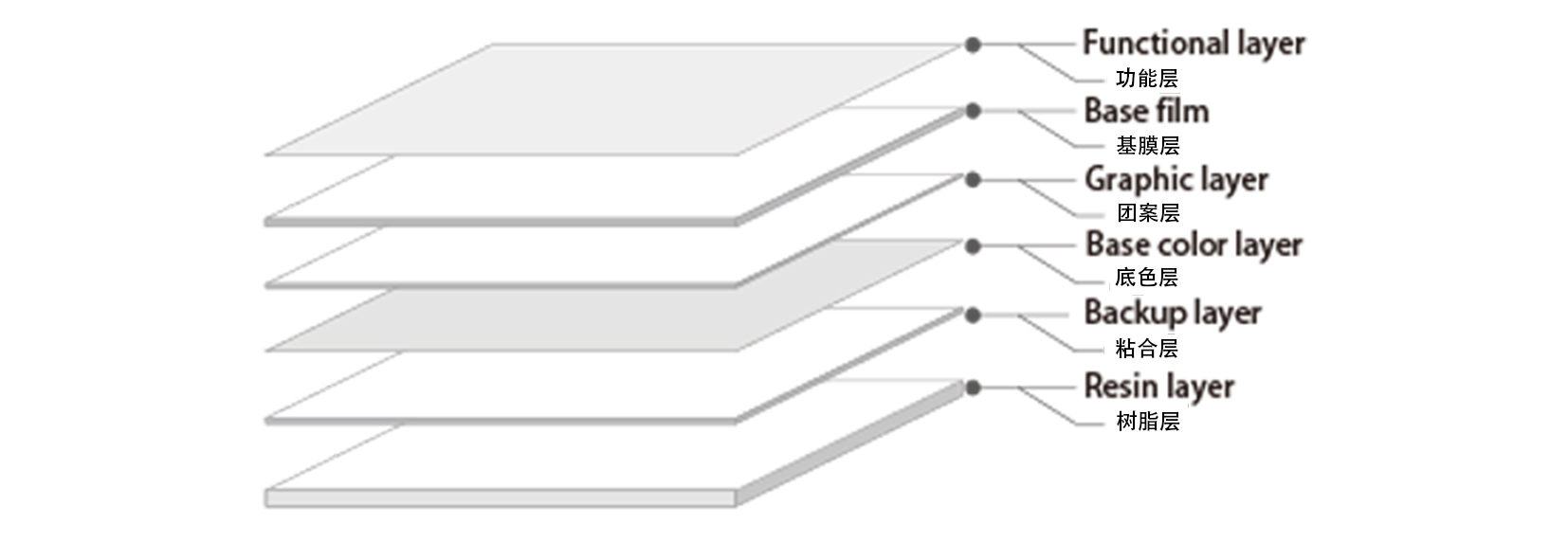

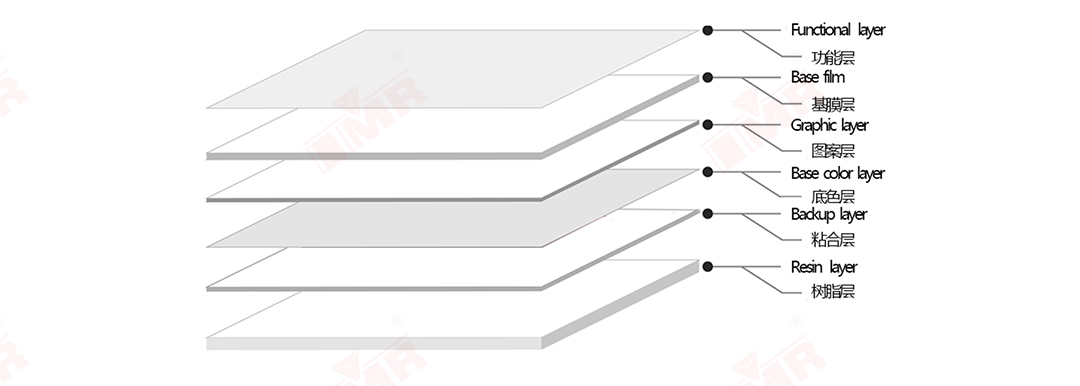

    • IMR-TJ process layering diagram

      IMR-TJ process layering diagram

    • IMR-TJ product display

      IMR-TJ product display

  • IMR

    IMR

    IMR

  • IMR

    IMR

    IMR


  • 工艺
    Technology
    膜厚(mm)
    Film thickness
    产能
    capacity
    良率
    Yield
    成本
    Cost
    拉伸
    stretching
    IMR0.038~0.075




    High




    High

    R&D


    Middle

    MOULD


    Middle

    PRODUCT


    Low




    Low

    IML0.075~0.25


    Middle


    High


    Low


    High


    Middle


    Middle

    IMT0.075~0.25


    Middle


    Middle


    High


    High


    High


    Middle

    IMR-TJ0.075~0.3


    High


    Middle


    Middle


    High


    High


    High

    INS/FIM0.25~2.0


    Middle


    High


    High


    High


    High


    High

    ATS0.075~1.0


    Middle


    Middle


    Low


    Low


    High


    High

    IME0.125~1.0


    Low


    Low


    High


    High


    High


    Middle


  • IMR

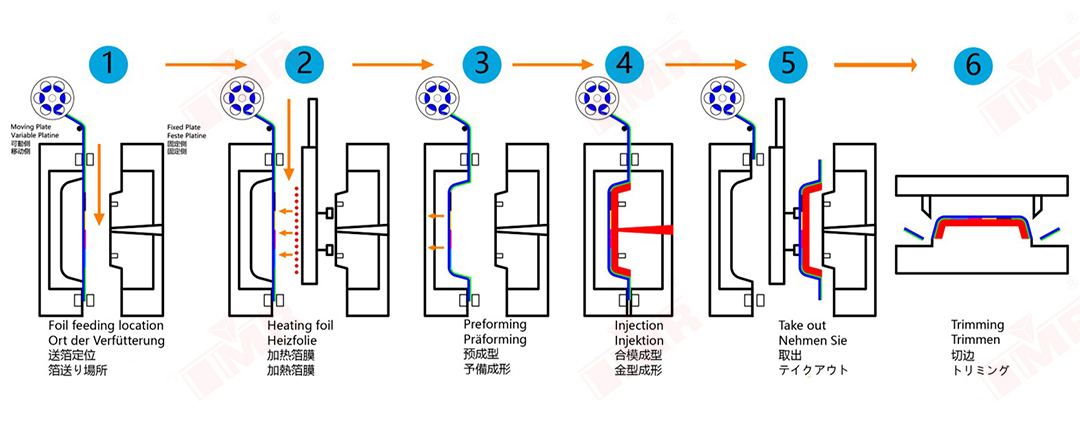

IMR-TJ process flow

IMR-TJ Range of application
