Self-luminous

The self-luminous display process is a physical phenomenon in which an alternating electric field is generated by applying an alternating voltage across the two poles, and the electrons excited by the electric field hit the fluorescent material (zns), causing the jump, change, and recombination of the electron energy level to emit a high-efficiency cold light. , The phenomenon of electroluminescence.

  •       The self-luminous display process is a physical phenomenon in which an alternating electric field is generated by applying an alternating voltage across the two poles, and the electrons excited by the electric field hit the fluorescent material (zns), causing the jump, change, and recombination of the electron energy level to emit a high-efficiency cold light. , The phenomenon of electroluminescence.

          The process principle of the light-emitting sheet: The positive and negative electrodes acting on the two layers are connected and collide to generate photons, and the light-emitting sheet is displayed by light. By connecting the AB two electrode contacts, the circuit is turned on, so that the electrons act on the conductive ink and then the light-emitting sheet is obtained on the light-emitting layer. The process can be applied to a variety of in-mold injection molding processes. Such as: IMR, IML, IME, ATS... etc.


          The characteristics of the light-emitting sheet technology: 1. There are many kinds of light colors, uniform light emission, long service life and convenient maintenance. 2. Ultra-thin, extremely light, waterproof, impact-resistant, free to bend, cut, and easy to install. 3. The driving voltage is shared by AC and DC, low power consumption, no heat, no light damage.

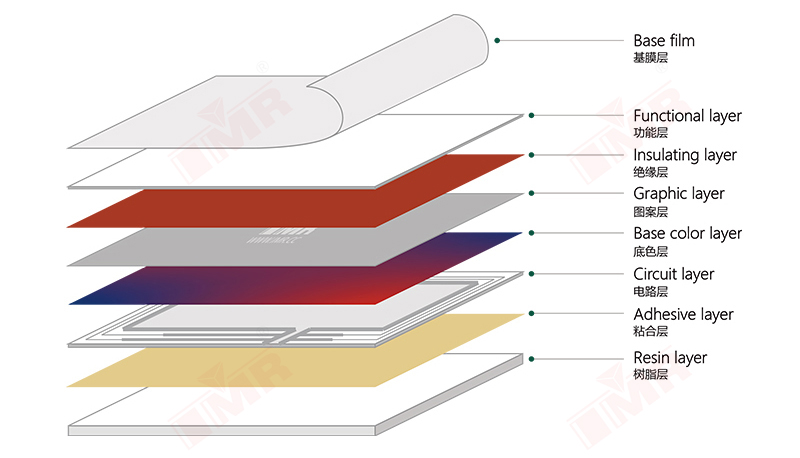

    Layered schematic

    Layered schematic

    Products Show

    Products Show

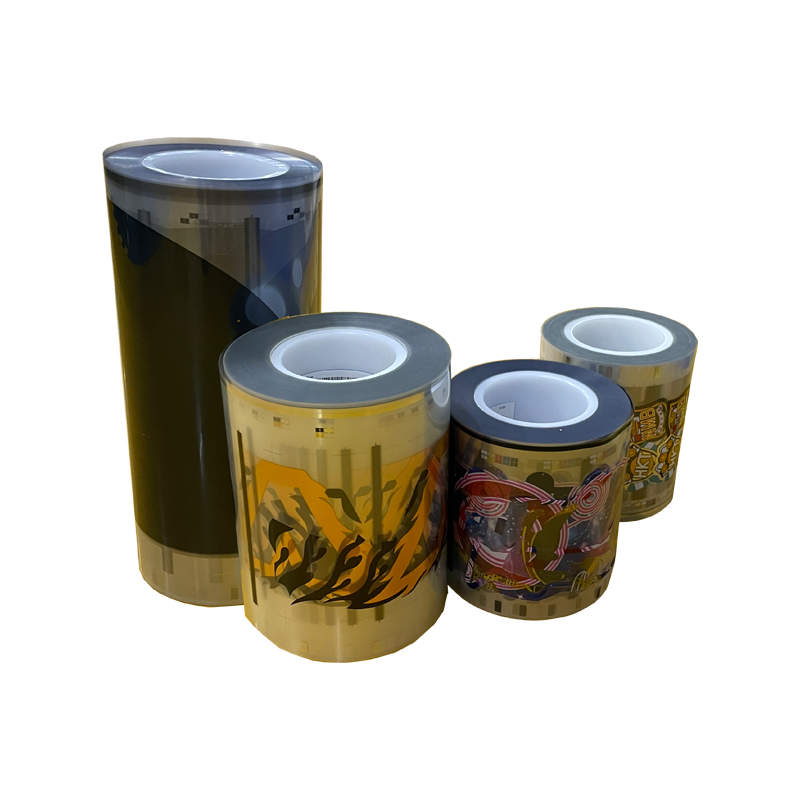

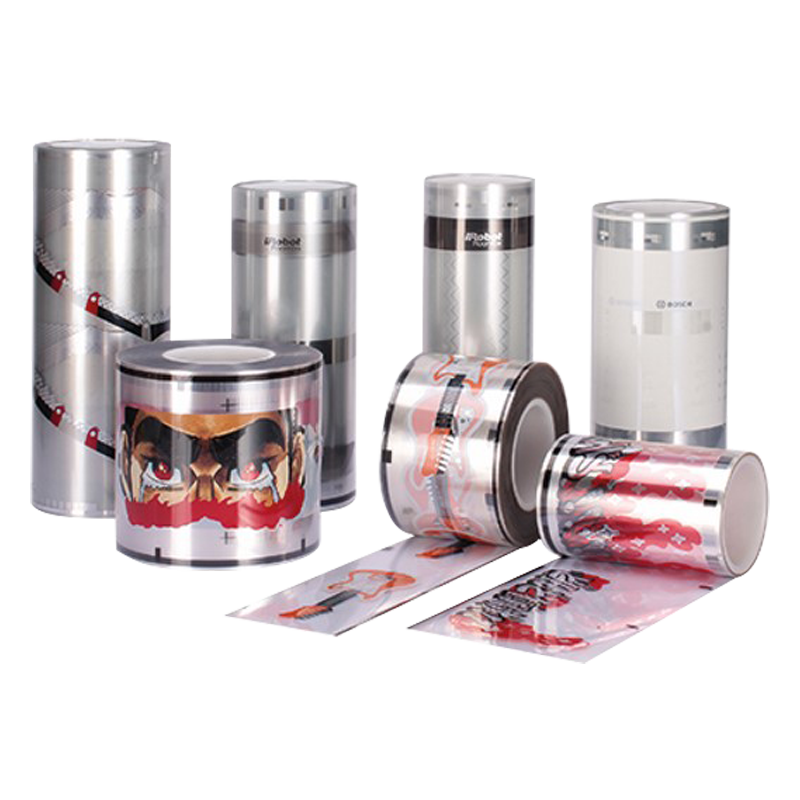

  • IMR

  • IMR

    IMR

    IMR

  •       Advantages of self-luminous process 1. Light weight: 0.2 grams per square centimeter 2. Thin body: thickness between 0.2~0.5mm 3. Power saving: every 80W can be used for one square meter of light-emitting film 4. Multiple shapes: can be bent, cut, and made special shapes design 5. Impact resistance: can withstand plane high pressure up to 10 tons per square meter



  • IMR

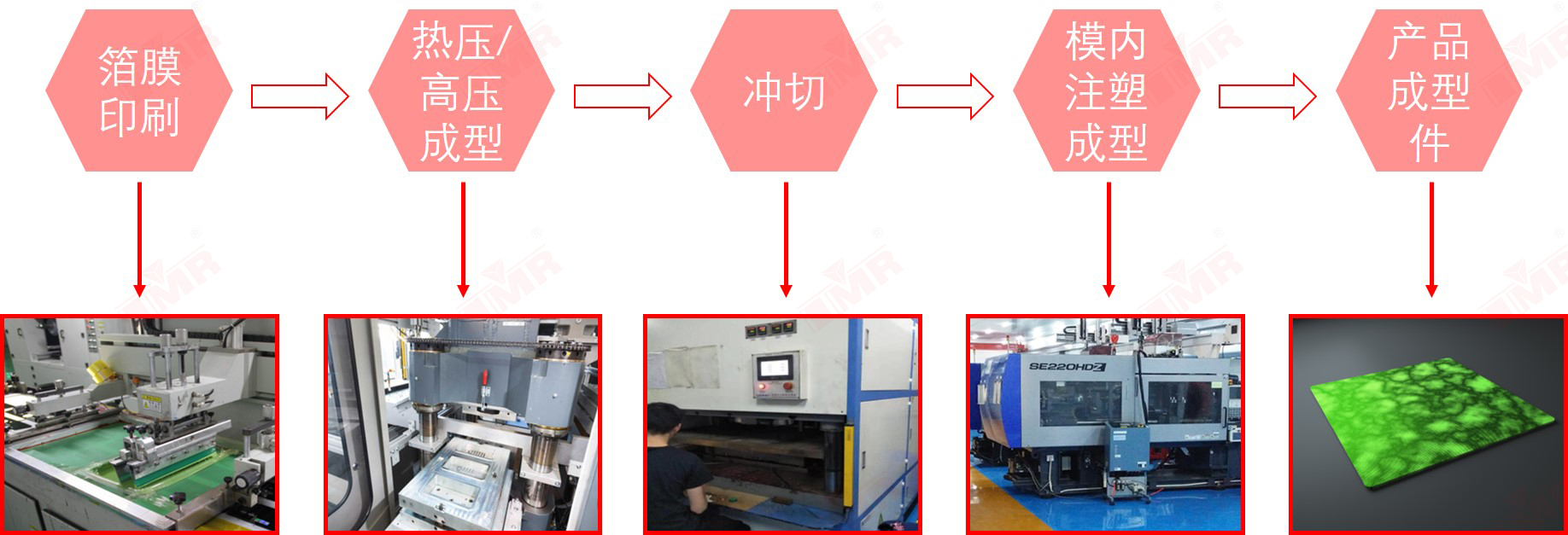

Self-luminous display process

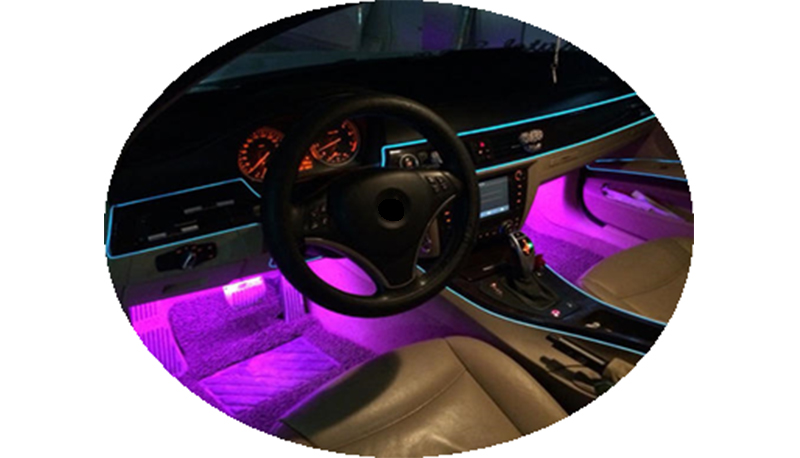

Self-luminous Range of application
