The full name of INS/FIM is Film Insertc Molding, also called insert injection molding process. This process uses high-pressure molding to stretch the printed sheet in three dimensions, then cut out the inserts according to the product shape, and then The insert is accurately placed in the injection mold cavity and injection molded.

  •       The full name of INS/FIM is Film Insertc Molding, also called insert injection molding process. This process uses high-pressure molding to stretch the printed sheet in three dimensions, then cut out the inserts according to the product shape, and then The insert is accurately placed in the injection mold cavity and injection molded.

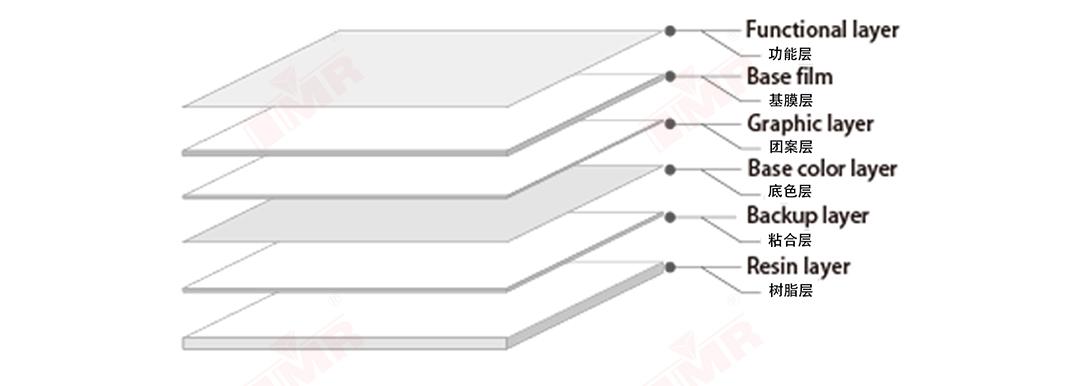

    Layered schematic

    Layered schematic

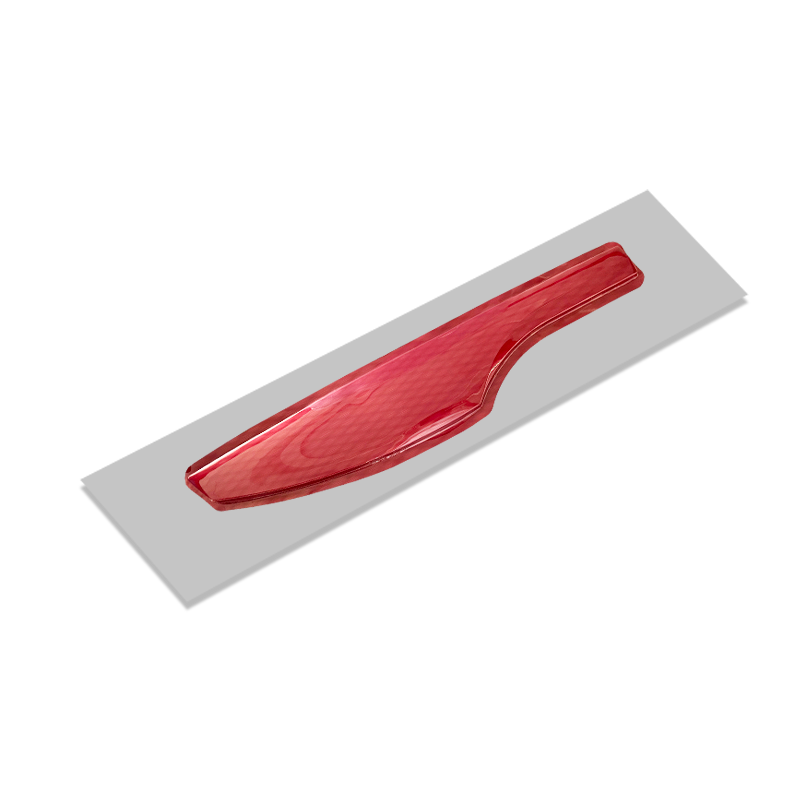

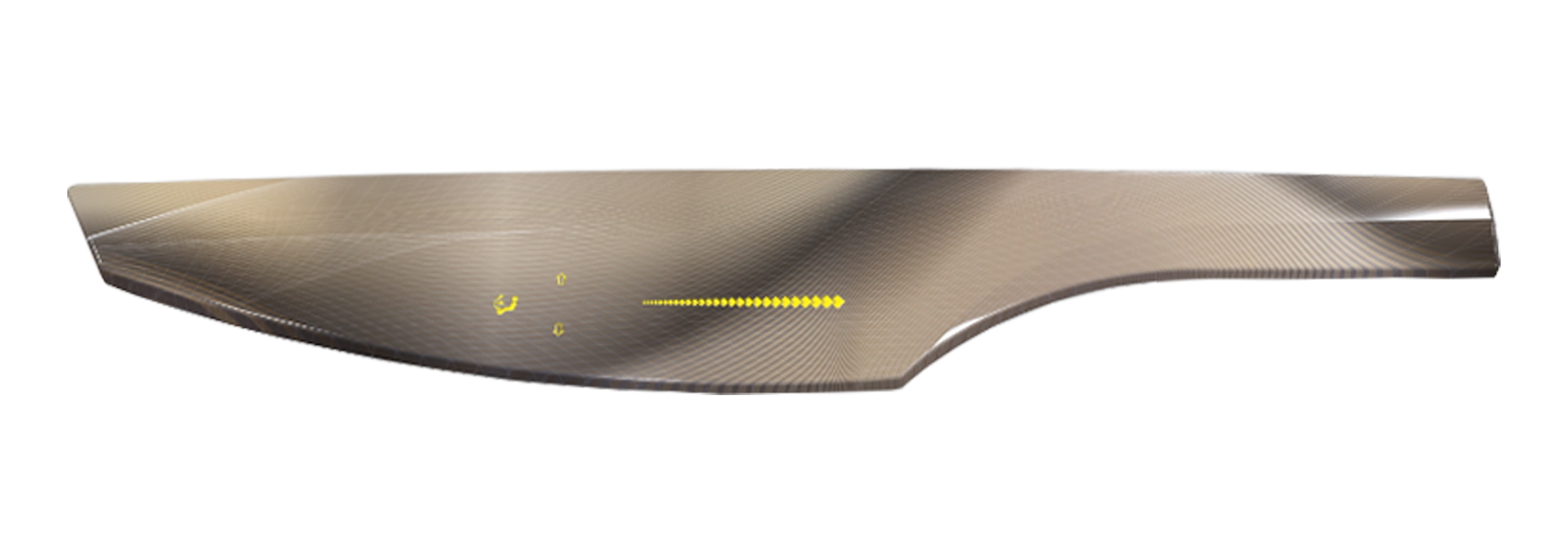

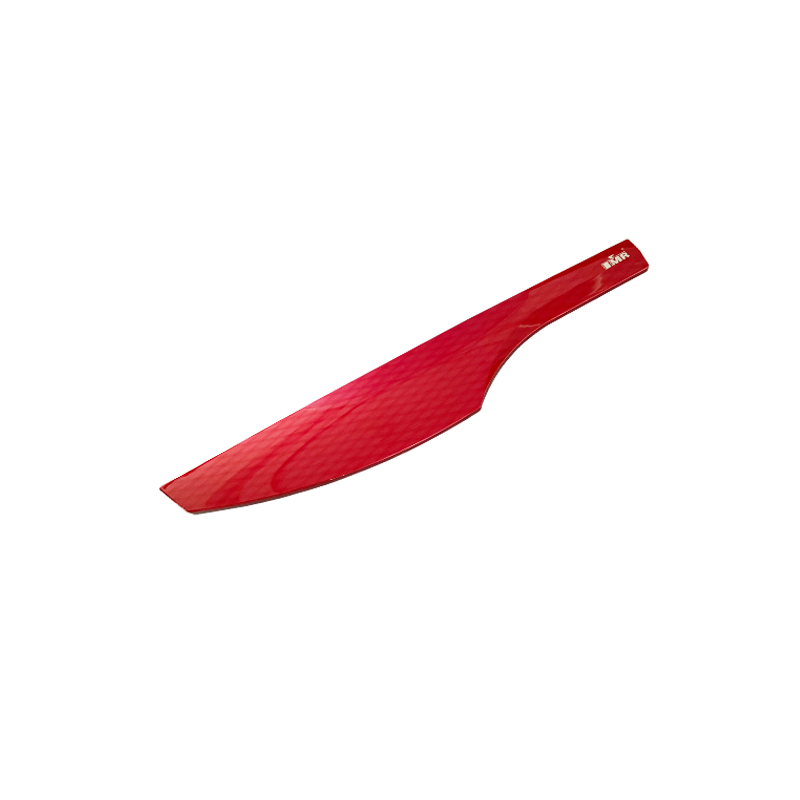

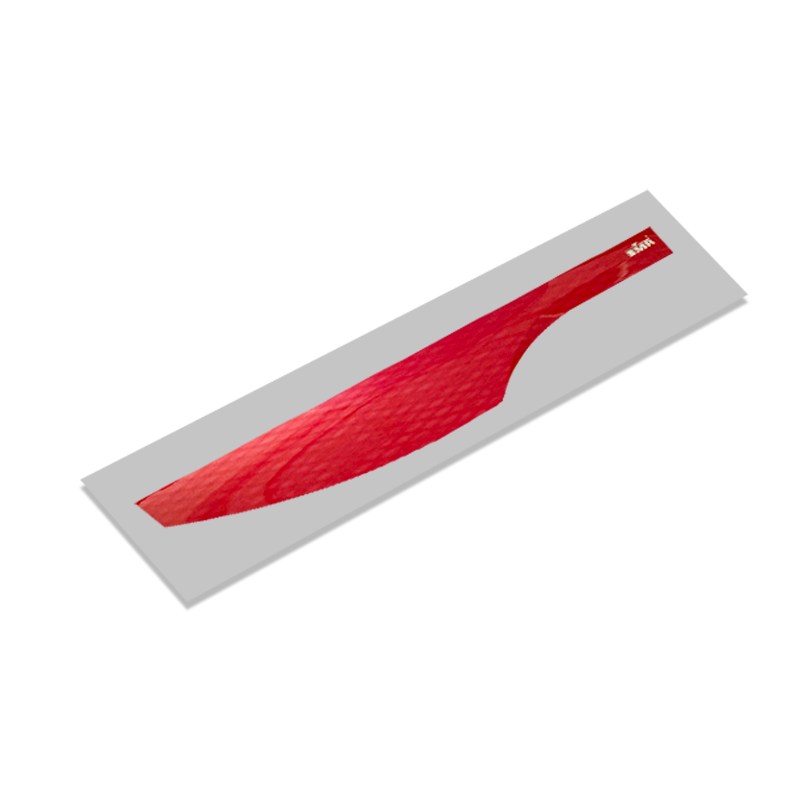

    INS/FIM product display
